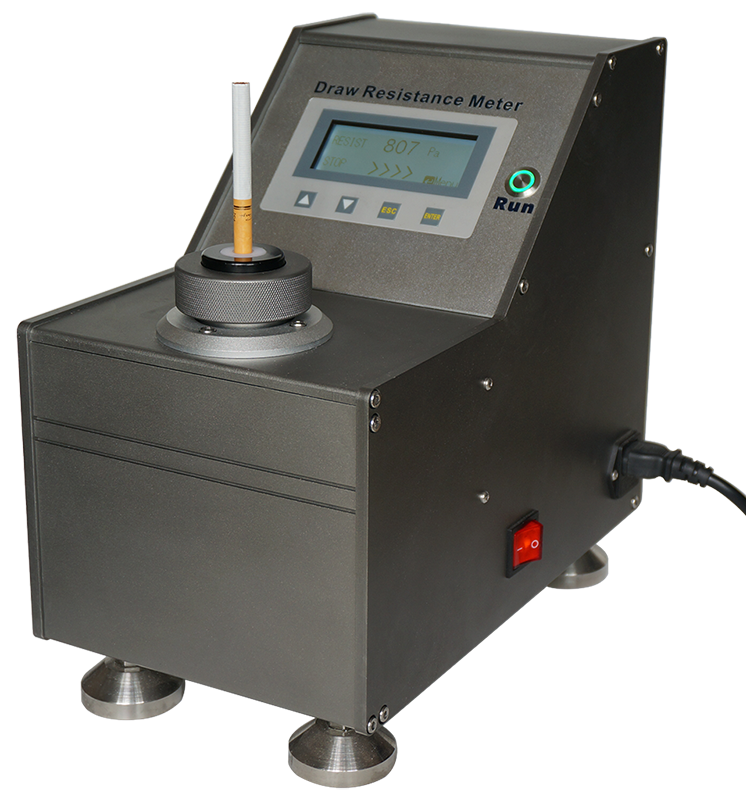

Introduction
The instrument simulates a person's smoking action inhalation with a fixed flow of 17.5 ml / s of flow air and then generates a certain vacuum pressure at the suction end of the cigarette. This pressure is the resistance of the suction, referred to as the suction resistance, and the pressure can be measured to measure the suction resistance.
Application
The tester can measure filter rods and finished cigarettes, cigar suction resistance, used for tobacco production quality control, tobacco testing.
Features
The use of high-precision large-scale imported electronic flow sensors and pressure sensors can accurately measure the smoke suction performance.
A key test. Install the sample, and just press a button. Then, you can quickly test the result. The instrument with USB interface, you can use the software to count, analyze test the results , and print the standard test report, you can also save the test report as EXCEL format.
Compact structure, space-saving design, easy to use.
Technical Parameters
|
Items |
Parameters |
|
Measuring range |
0~10kPa |
|
Error |
Less than1% |
|
Test port diameter |
7.7mmg |
|
Power |
AC100-240V 50/60Hz |
|
Dimensions |
L520 x W280 x H300mm |
|
Resolution |
Parameters |
|
Measuring range |
1Pa |
|
Test time |
15 seconds on average |
|
Test port depth |
9mm |
|
PC communication |
USB port connection |
|
Weight |
10kg |
