Architectural Coatings Stain Resistance Tester
Standard
- GB/T 9780-2013 (China’s national standard for evaluating stain resistance of architectural coatings via reflection coefficient analysis)
- ASTM D6578 (Standard practice for determining the resistance of synthetic polymeric materials to hydrolysis)
- ISO 11998 (Determination of wet scrub resistance and cleanability of coatings)
Product Advantages
- Precision Stain Simulation
- 1,500g ±10g friction head with adjustable speed (10–99 cycles/min) replicates real-world scrubbing conditions.
- 300mm stroke length ensures uniform stain application across 432mm x 165mm test panels.
- Automated Compliance
- Preloaded GB/T 9780-2013 protocols with automatic reflection coefficient calculations (ΔL* values).
- LCD touchscreen: Real-time display of cycles, speed, and scrubbing resistance metrics.
- User-Centric Design
- Ergonomic controls: Adjustable speed/stroke settings via rotary encoder with tactile feedback.
- Quick-release friction head: Tool-free changes for varying stain types (ink, coffee, grease).
- Data-Driven Insights
- Built-in software logs scrub cycles, *ΔL values**, and stain removal efficiency (SRE) percentages.
- Exportable reports with spectral reflectance curves (400–700nm wavelength scan).
- Industrial Durability
- Anodized aluminum frame with corrosion-resistant coating for 10,000+ hour lifespan.
- IP54 enclosure for dust/water resistance in laboratory environments.
Product Features
Stain Application:
- Dip-coating method: Immerses test panels in stain solutions (ink/coffee/grease) for 5-second adhesion.
- Scrubbing mechanism: Reciprocating friction head with 1,500g load (adjustable via sliding weights).
- Control System:
- PID closed-loop control maintains ±1 cycle/min speed accuracy.
- LCD touchscreen with embedded GB/T 9780-2013 and ASTM D6578 protocols.
- Data Analytics:
- Spectrophotometer integration port for pre/post-test reflectance measurements (ΔL* calculation).
- Automatic SRE calculation: SRE (%)=ΔLcontrolΔLcontrol−ΔLtest×100.
- Safety Features:
- Emergency stop button, overload protection (1,600g max), and anti-slip rubber feet.
- Sample Handling:
- 432mm x 165mm x 0.25mm black PVC test panels (matte finish, 85% reflectance).
Technical Parameters
| Specification | Details |
|---|---|
| Friction Head Weight | 1,500g ±10g (adjustable via sliding weights) |
| Speed Range | 10–99 cycles/min (±1 cycle accuracy) |
| Stroke Length | 300mm (±0.5mm tolerance) |
| Cycle Count | 0–99,999 cycles (automatic pause at setpoints) |
| Input Voltage | AC 220V/50Hz (110V/60Hz optional) |
| Test Panel Size | 432mm x 165mm x 0.25mm (black PVC) |
| Dimensions | 590mm (L) x 460mm (W) x 300mm (H) |
| Weight | 30kg (net) / 35kg (with accessories) |
Accessories Included
- Test Panel Kit – 10x black PVC panels (432mm x 165mm x 0.25mm, 85% reflectance).
- Stain Set – Ink, coffee, and grease solutions (GB/T 9780-2013 compliant).
- Calibration Tools – NIST-traceable weight set and reflectance standard.
- Software License – Lifetime access to StainLab Pro (cloud-connected with API for integration with X-Rite spectrophotometers).
- Installation & Training – On-site setup by certified engineers + 8hrs virtual training for operators.

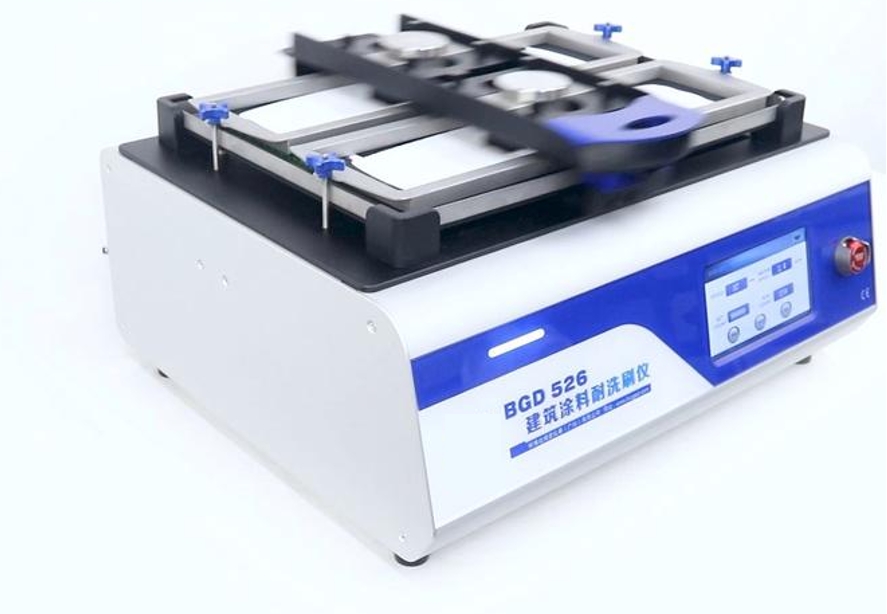

Stain resistance tester of architectural coatings Display:
