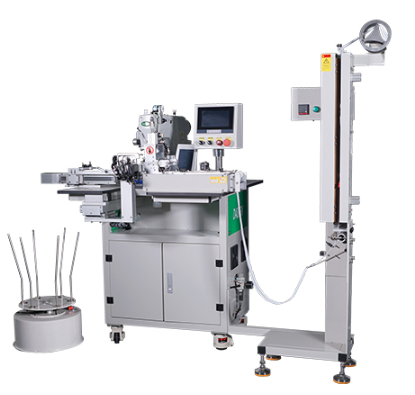

Automatic Rubber Band Connecting Machine

The Automatic Rubber Band Connecting Machine is a specialized sewing machine designed for automatic joining of elastic bands and fabric materials. It integrates automatic feeding, precise counting, pattern storage, and stable sewing control functions to improve production efficiency and stitching consistency. The machine supports flat connection and overlap connection methods, making it suitable for manufacturing elastic waistbands, garment accessories, and stretch textile products. The Automatic Rubber Band Connecting Machine is widely used in underwear, sportswear, casual wear, and other apparel production industries.

Machine characteristics:

1、Equipped with high-end counter, which can realize complete counting function

2、Double the bobbin to reduce the frequency of shuttle change

3、No bottom line, automatic stop when disconnected, to prevent material waste

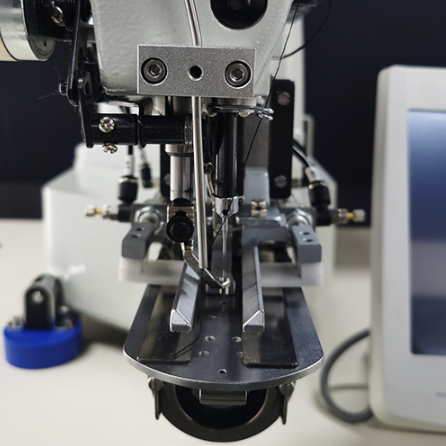

4、Equipped with middle presser foot to provide more stable sewing quality

Application:

Men's underwear, sports pants, casual pants, sweaters, bras, beach pants, etc.

Standards

(1)ISO 4915 — Textiles — Stitch types — Classification and terminology

(2)ISO 4916 — Textiles — Seam types — Classification and terminology

(3)ISO 13935 — Textiles — Seam tensile properties of fabrics and made-up textile articles

The performance parameters:

Power:0.8KW

Sewing machine revolution:2800rpm(max)

Possible rubber width:5mm-60mm

Splicing length:120mm-999mm

Smallest possible circumference:150mm

Maximum overlapping width:25mm

Measurement reeling out system:Pulse motor system

Pattern memory:Storage card(SD)

Maximum numbers of patterns: Maximum 2G

Materials cutting method:Cold Kinfe cut

Applicable fabrics: Elastic ribbon/woven/Fabric/Lace

Sewing production:800-900个/H 800-900 piece/H

Splicing range:Splicing range of tacking machine is within 6 cm/Pattern machine within 8 cm

Splicing method:Two ways of flat connection and overlap connection

FAQ

(1)What types of garments can be produced with this machine?

This machine is suitable for garments requiring elastic band connection, including men’s underwear, sports pants, casual pants, sweaters, bras, and beachwear. It is designed for production environments requiring stable and efficient elastic sewing processes.

(2)What elastic materials can be processed by this equipment?

The machine can process elastic ribbons, woven elastic materials, fabrics, and lace. The applicable material width range is 5 mm to 60 mm, allowing manufacturers to handle different garment elastic components.

(3)What are the advantages of automatic elastic band joining compared with manual sewing?

Automatic operation improves production consistency by controlling feeding, stitching, and counting processes. It reduces manual errors, improves output efficiency, and helps maintain uniform connection quality during large-scale garment manufacturing.

(4)What connection methods are available for elastic band production?

The machine supports two connection methods: flat connection and overlap connection. Manufacturers can select the appropriate method according to garment design requirements and the required appearance of the finished product.

(5)How can manufacturers improve sewing quality during operation?

Stable material feeding, proper adjustment of sewing parameters, regular maintenance, and correct selection of needles and threads are important. The middle presser foot and automatic control functions also help improve stitching stability and production reliability.
