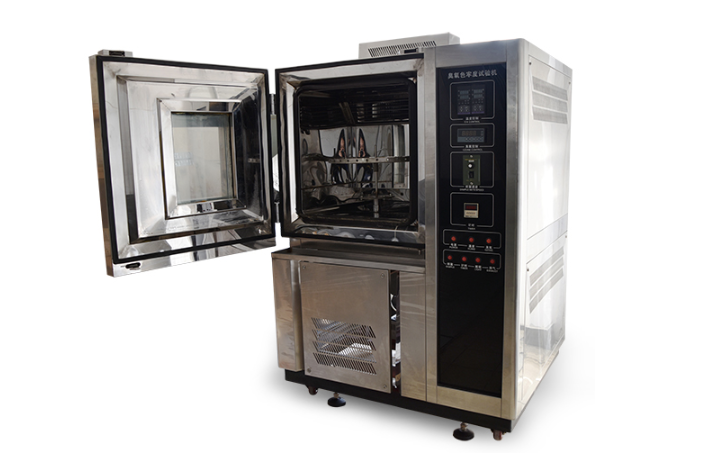

Ozone Test Chamber | Reliable Testing for Color Fastness

The Ozone Test Chamber is a specialized laboratory instrument designed for testing color fastness and resistance to airborne contaminants. It is suitable for various textiles, including knitted fabrics, woven fabrics, synthetic fibers, and natural fibers. The chamber is also ideal for ozone color fastness testing of materials such as nylon carpets. Equipped with a multi-functional rotating sample rack and a high-output ozone generator, it ensures accurate, reliable, and repeatable results for textile quality control and R&D applications.

Applications

The Ozone Test Chamber is widely used in textile manufacturing, quality assurance, research and development, and certification testing. It evaluates the effect of ozone exposure on color fastness, helping manufacturers ensure product durability and compliance with international standards.

Standards Compliance

The chamber complies with the following standards:

AATCC 109-2011: Colorfastness to Ozone in the Atmosphere under Low Humidities

AATCC 129-2011: Colorfastness to Ozone in the Atmosphere under High Humidities

ISO 105-G03-1993: Textiles — Tests for Color Fastness — Part G03: Color Fastness to Ozone

GB/T 11039.3-2005: Textiles — Tests for Color Fastness — Part 3: Color Fastness to Ozone

JIS L0890: Test Methods for Color Fastness to OzoneAccelerated Ozone Tester Features

Multi-functional rotating sample rack supports hanging and placing samples in various ways. Adjustable rack speed accommodates different sample shapes and specifications.

High-output ozone generator with a closed-loop concentration control system and an intuitive control panel for precise parameter setting ensures reliable test results.

Transparent observation window with internal lighting system allows monitoring of the test process, while a security door lock ensures operational safety.

Technical Parameters

Items	Parameters
Temperature Range	10℃–50℃
Temperature Accuracy	±1.0℃
Humidity Range	50–90% RH
Humidity Accuracy	±3%
Ozone Concentration Range	0–500 pphm
Adjustment Method	Flow regulation
Ozone Generation	Static air emissions
Internal Dimension	400 × 400 × 500 mm
Power Supply	220V/50Hz or 115V/60Hz
External Dimension	1000 × 650 × 1450 mm
Weight	95 kg

FAQ

What is an Ozone Test Chamber?

The Ozone Test Chamber is a laboratory instrument designed to evaluate the color fastness and resistance of textiles and materials to ozone and airborne contaminants. It can simulate environmental ozone exposure under controlled temperature and humidity conditions to test various fabrics.

What is it used for?

It is used to assess how materials, such as knitted fabrics, woven fabrics, synthetic fibers, natural fibers, and carpets, maintain their color and quality when exposed to ozone. The chamber helps manufacturers determine whether their products can withstand long-term environmental exposure.

Why is it important?

Ozone exposure can cause fading, discoloration, and degradation of textile materials. Using an Ozone Test Chamber allows manufacturers to identify potential weaknesses, improve product durability, and ensure compliance with international color fastness standards.

How is it used?

Samples are placed on the multi-functional rotating rack inside the chamber. Users set the desired ozone concentration, temperature, humidity, and test duration using the control panel. The chamber then exposes the samples to controlled ozone conditions, and the process can be observed through the transparent window.

Which scenarios is it suitable for?

It is suitable for textile R&D, quality control laboratories, certification testing, and industrial testing of fabrics, carpets, and synthetic materials. Any environment requiring evaluation of color fastness and ozone resistance can benefit from this chamber.
