AAA-Class LED Solar Simulator
The AAA-Class LED Solar Simulator is a compact steady-state LED solar simulator light source. Its spectral match is superior to xenon lamp light sources and is certified according to the AM1.5, IEC 60904-9:2020 Class AAA standard by the National Institute of Metrology, China (NIM). The unit can be installed inside a glove box, and its LED service life exceeds 10,000 hours, reducing lamp replacement and recalibration costs.
Application
(1) Perovskite solar cells
(2) Tandem solar cells
(3) Silicon solar cells
(4) Organic solar cells
(5) Photocatalysis
(6) Photolysis
(7) Photochemical reactions
Standards
(1) IEC 60904-9:2020 Class AAA
(2) AM1.5
(3) Certified by the National Institute of Metrology, China (NIM)
Technical Parameters
Parameter | A1 | A2 | A3 |

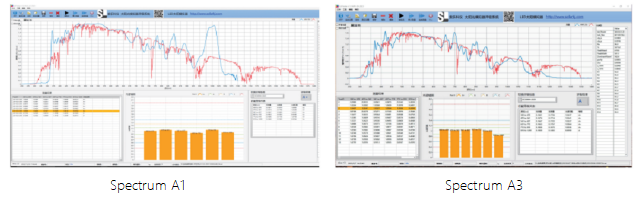

Spectral Range (nm) | 350–1100 | 350–1200 | 300–1200 |
Spectral Match | A | A | A |
Spatial Uniformity | A / <2% | A / <2% | A / <2% |
Temporal Stability | A / <2% | A / <2% | A / <2% |
Light Spot Size (mm) | 60 × 60 | 60 × 60 | 60 × 60 |
Effective Light Spot Size (mm), Compliant with Class AAA Standard | 30 × 30 | 30 × 30 | 30 × 30 |
Adjustable Irradiance (mW/cm²) | 10–110 | 10–110 | 10–110 |
Working Distance | 10 mm | 10 mm | 10 mm |
Service Life | >10,000 h | >10,000 h | >10,000 h |
Lamp Head Dimensions (mm) | 150 × 130 × 340 | 150 × 130 × 340 | 150 × 130 × 340 |
Spectral Adjustment | No | No | No |
Optical Breadboard Dimensions (mm) | 350 × 250 | 350 × 250 | 350 × 250 |
Adjustable Stand Height (mm) | 400 | 400 | 400 |
Voltage | 220 V | 220 V | 220 V |
Power Consumption | 100 W | 100 W | 100 W |
Cooling Method | Air Cooling | Air Cooling | Air Cooling |
Features
(1) Compact Design – Compact steady-state LED light source that can be installed inside a glove box.
(2) High Spectral Match – Provides spectral matching superior to xenon lamp light sources.
(3) Long Service Life – LED service life exceeds 10,000 hours.
(4) Multiple Spectral Configurations – Available in A1, A2, and A3 configurations for different spectral ranges.
(5) Low Power Consumption – Uses a 100 W LED light source with air cooling.
(6) Class AAA Certification – Certified according to the AM1.5, IEC 60904-9:2020 Class AAA standard by NIM.
