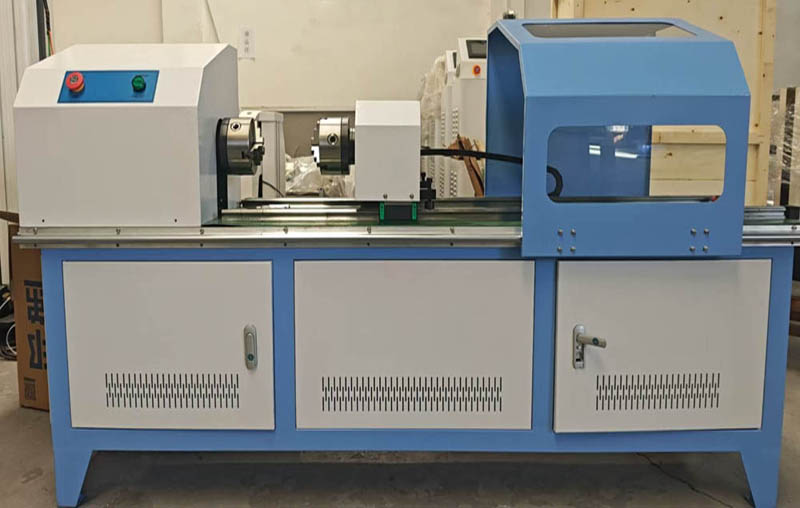

Electronic Torsion Fatigue Testing Machine
The Electronic Torsion Fatigue Testing Machine is a precision laboratory instrument designed for static torsion testing and torsion fatigue testing of materials and shaft components. The machine provides real-time measurement and display of torque and torsion angle curves, enabling accurate evaluation of mechanical performance, durability, and fatigue life. It is widely used in research institutions, quality control departments, and production facilities for metals, composites, and mechanical parts testing.
Application
The Electronic Torsion Fatigue Testing Machine is used for:
Static torsion testing of various shafts and components.
Torsion fatigue testing under cyclic loading conditions.
Customized testing programs to evaluate material performance under different torque or torsion angle conditions.
Standards
ISO 1143, GB/T 1804, GB/T 3075, or relevant torsion fatigue testing standards.
Features
Computer-controlled operation with real-time torque–time and torsion angle–time curve display.
Precision CNC servo motor with planetary reducer for uniform torque application.
High-accuracy bidirectional torque sensor and angle encoder for precise measurement.
Graphical interface software allows synchronized display of torque–angle, torque–rotation, and torque–time curves.
Adjustable test space with movable fixtures to accommodate different specimen lengths.
Fully automated data acquisition, storage, and report generation.
Optional environmental chamber for temperature-controlled tests.
Technical Parameters
| Item | Specification |
|---|---|
| Static torque range | ±50 Nm |
| Dynamic torque range | ±50 Nm |
| Torque measurement range | 1%–100% FS |
| Minimum torque reading | 0.01 Nm |
| Torque indication error | ≤ ±1.0% |
| Torque repeatability error | ≤ 1.0% |
| Dynamic test frequency | 0.1–5 Hz |
| Dynamic test angle range | ±360° |
| Maximum axial test space | 500 mm (customizable) |
| Temperature range | Room temperature |
| Cycle times | 99,999,999 times |
| Test level | Level 1 |
Working Environment Requirements
Room temperature: 10–35°C (23°C ±5°C recommended for precise testing).
Relative humidity: ≤80%.
Stable foundation installation required.
Clean environment, free of vibration, corrosive media, or strong electromagnetic interference.
Power supply voltage fluctuation: ±10% of rated voltage.
Configuration List
Testing machine main unit (with reinforced workbench and integrated cabinet) — 1 set
Special torsion fatigue software — 1 set
AC servo motor (Panasonic, Japan) — 1 set
Motor driver (Panasonic, Japan) — 1 set
High-precision angle sensor (Omron, Japan) — 1 set
Movable fixed support seat — 1 set
Fixture connection port — 1 set
Bidirectional dynamic and static torque sensor — 1 set
High-precision planetary reducer — 1 set
Linear guide rail — 1 set
Guide rail slider — 1 set
Visible test protection device — 1 set
Equipment sheet metal parts — 1 set
Desktop computer (Lenovo Commercial) — 1 set
LCD monitor (Lenovo THINK) — 1 set
Printer (HP Brand) — 1 set
Special fixture — 1 set
Manual control device — 1 set
Random tools — 1 set
Random documents — 1 copy
FAQ
1. What is this product?
The Electronic Torsion Fatigue Testing Machine is an instrument designed to perform static and cyclic torsion tests on materials and mechanical components.
2. What is it used for?
It evaluates torsional strength, fatigue life, and torsion behavior of materials under different torque or angle conditions.
3. How does it work?
The specimen is clamped between fixtures. A CNC servo motor applies torque through a planetary reducer, and sensors collect torque and torsion angle data. The system displays curves in real time and generates reports.
4. Why is it important?
Torsion testing ensures materials and components meet mechanical performance standards and reliability requirements for industrial, automotive, or aerospace applications.
5. What materials can be tested?
Shafts, rods, and mechanical components made of metals, composites, or other torsion-capable materials within the machine’s torque range.
