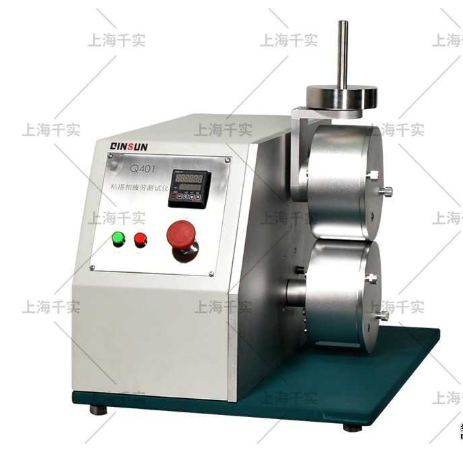

Magic tape fatigue testing machine
The Magic Tape Fatigue Testing Machine, also known as a Velcro Fatigue Tester or Hook and Loop Fastener Fatigue Tester, is designed to evaluate the durability of hook-and-loop fasteners through repeated opening and closing cycles. After repeated use, the hook and loop components are brought into contact and rolled together under a specified load to ensure consistent engagement. Their residual peel or shear strength can then be evaluated using the corresponding strength testing method.
The machine features adjustable loading, a digital cycle counter, and a motor-driven roller system. It is suitable for manufacturers and quality control laboratories that need to evaluate the fatigue resistance and performance stability of hook-and-loop fasteners used in footwear, clothing, bags, and other products.
Application
(1) Footwear: Hook-and-loop fasteners used in children's shoes, sports shoes, and other footwear.
(2) Clothing: Fastening tapes used in garments, workwear, and outdoor apparel.
(3) Bags and Luggage: Hook-and-loop closures used in bags, cases, and luggage accessories.
(4) Textile Products: Hook-and-loop tapes used in textile assemblies and household products.
(5) Industrial Fasteners: Touch-and-close fastening materials used in compatible industrial applications.
(6) Quality Control and Research: Comparative evaluation of fastener durability before and after repeated opening and closing.
For tests requiring residual peel or shear strength measurements, the conditioned specimens should be evaluated using a suitable tensile testing method and the corresponding acceptance criteria.
Standards
(1) DIN 3415-1:1990-06 — Textile touch and close fasteners; requirements. This standard specifies requirements for textile hook-and-loop fasteners. Its applicability to the intended test configuration should be confirmed.
(2) SATRA TM123:2018 — Closure strength of touch and close fasteners. This method covers peel and shear strength, including strength changes after repeated opening and closing.
(3) ISO 22776:2004 — Footwear — Test methods for accessories: Touch and close fasteners — Shear strength before and after repeated closing.
(4) GB/T 3903.20-2008 — Footwear — Test methods for accessories: Touch and close fasteners — Peel strength before and after repeated closing.
(5) GB/T 3903.21-2008 — Footwear — Test methods for accessories: Touch and close fasteners — Shear strength before and after repeated closing.
(6) GB/T 23315-2009 — Touch and close fasteners. This is a product standard for hook-and-loop fasteners rather than a standalone fatigue-testing method.
Parameters
| Parameter | Specification |
|---|---|
| Product Name | Magic Tape Fatigue Testing Machine |
| Upper / Lower Roller Diameter | Ø162.5 mm / Ø160 mm, as specified; roller identification to be confirmed |
| Roller Width | 70 mm |
| Rolling Speed | 60 rpm |
| Fixture Slot Width | 4 mm |
| Fixture Slot Length | 55 ± 2 mm |
| Reversing Time | 30 s, as specified |
| Specified Test Cycles | 5,000 cycles, as provided |
| Counter Range | 0–999,999 cycles |
| Applied Load | 5 kg, as specified; loading position and function to be confirmed |
| Available Weights | 250 g, 500 g, 750 g, 1,000 g |
| Counter Display | LCD digital counter |
| Motor | AC 1/8 HP dual-frequency motor, as specified |
| Instrument Material | Stainless steel |
| Surface Finish | Painted |
| Dimensions | 700 × 470 × 600 mm |
| Net Weight | 51 kg |
| Power Supply | AC 220 V, 50 Hz, 5 A |
Features
(1) Repeated Opening and Closing: Evaluates the durability of hook-and-loop fasteners after repeated use.
(2) Motor-Driven Roller System: Provides powered roller movement for specimen engagement and conditioning.
(3) Adjustable Loading: Counterweights and loading components allow the applied force to be configured for the required test method.
(4) Digital Cycle Counter: LCD display with a counting range of 0–999,999 cycles.
(5) Reversing Function: Supports the specified reversing operation; the exact reversing sequence should be confirmed with the manufacturer.
(6) Roller Contact: Applies roller pressure to bring the hook and loop surfaces into consistent contact.
(7) Stainless Steel Construction: Provides a durable instrument structure for routine laboratory use.
